Description

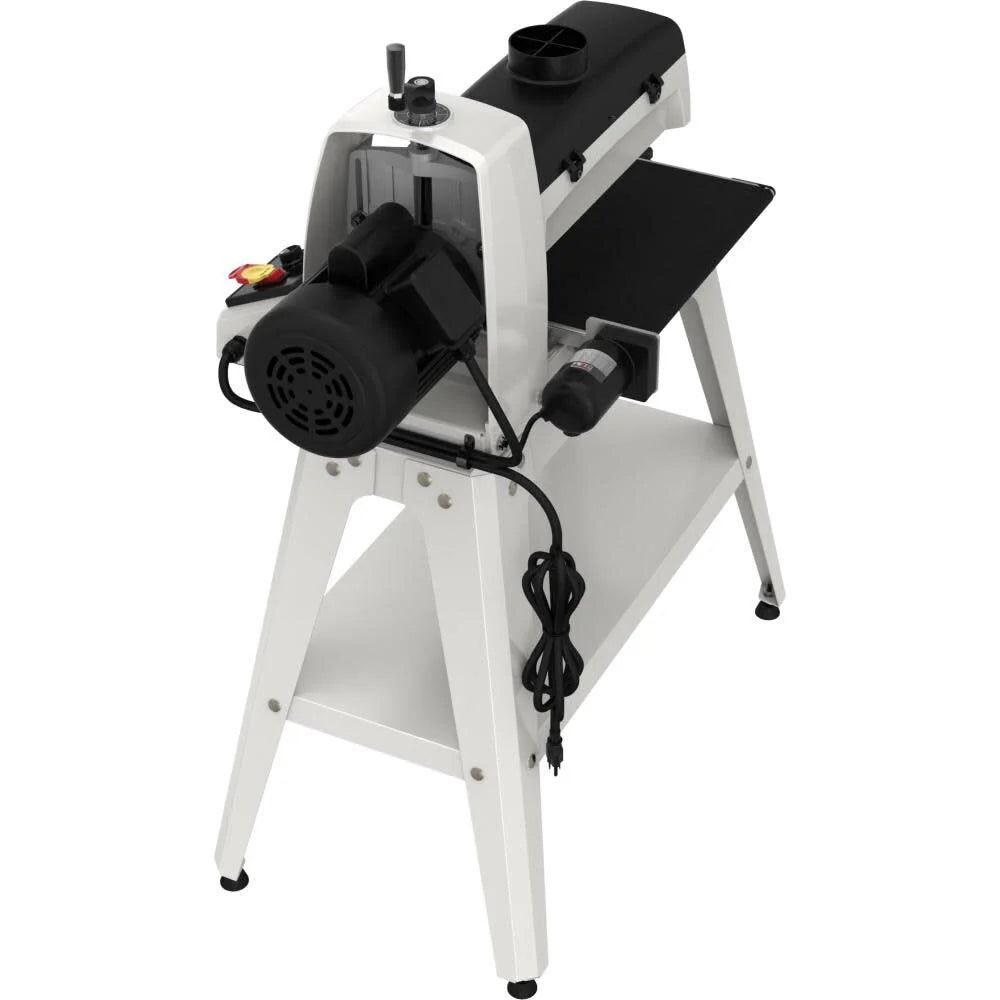

16-32 Drum Sander with Stand

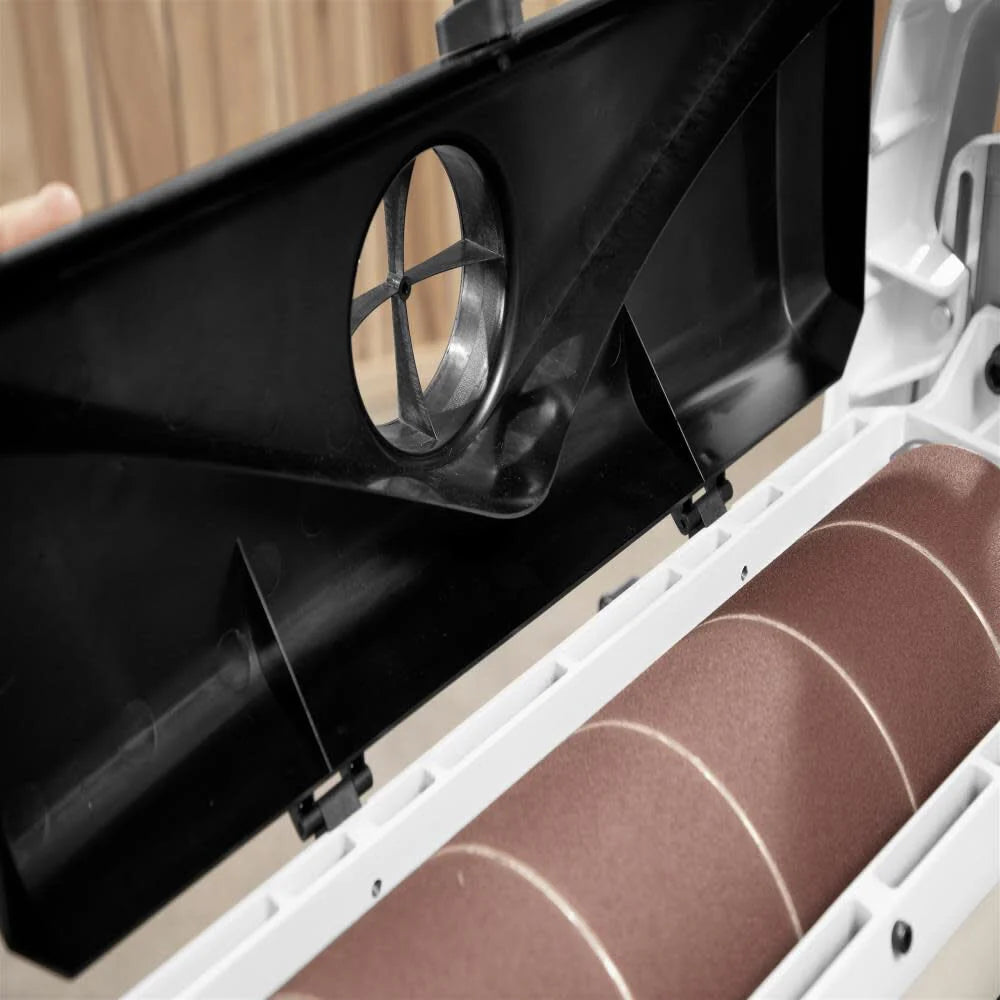

�The innovative tool-less parallelism system keeps adjustments simple. The worktable is easily positioned by a turn of the parallelism dial. The variable-speed rate permits you to choose the optimal feed rate for a full range of projects拢卢 while the SandSmart? feature continuously monitors the load on the drum motor to prevent an overload situation. The mirrored design of the dust hood optimizes dust collection preventing chips and dust from getting between your work-piece and the finish.
Features
SandSmart control continuously monitors the load on the drum motor and automatically regulates the speed of the conveyor motor to maintain the highest feed rate without overload
Conveyor bed parallelism is easily adjusted by turning the dial on the outside of the bed �� no tools required
Parallelism adjust dial features a stop to quickly return the conveyor bed to a flat position
Snipe is virtually eliminated thanks to the adjustable tension rollers that apply downward pressure to the workpiece
Tool less abrasive take-up clips make changing abrasives quick and easy
Precision-machined and dynamically balanced extruded aluminum drum is designed to dissipate heat and protect the work surface from heat-damage
Precision-flattened reinforced steel conveyor bed
Redesigned conveyor system pulls the workpiece through the sander instead of pushing
One rotation of the top-position handwheels adjusts the drum height by 1/16 In
Specifications
Amperage (A)
20.0
Assembled Weight (lbs)
156.0
Bench or Stationary
Stationary
California Proposition 65 Warning Required
Yes
CSA Certified
No
Dust Collection
Yes
ETL Listed
No
Horsepower (hp)
1.5
Net Tool Weight (lbs)
156.0
Package Depth
20.0
Package Height
39.66
Package Weight
182.0
Package Weight (lbs)
182
Sander Style
Drum
UL Listed
No
Variable Speed
Yes
Voltage
115 Volts
